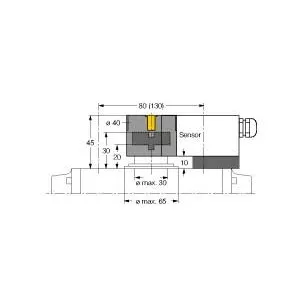

Accessories, Mounting Kit, Mounting kit for larger rotary actuators:, OD spacer plate and snap ring: max. 65 mm, Hole pattern on flange surface: 30 x 80 mm (30 x 130 mm), Connection shaft (shaft extension) height: 20 mm/OD: max. 30 mm, Included in delivery:, 1 spacer plate 10 mm, 1 spacer ring 10 mm, Mounting the spacer plate:, 2 cylinder screws M5 × 22 [DIN 912-A2], 2 lock washers A5 [DIN 137-A2], Mounting the puck with spacer ring:, 1 countersunk screw M6 × 36 [DIN 7991-A2])
Country of Origin = CN
EAN = 4047101112313
